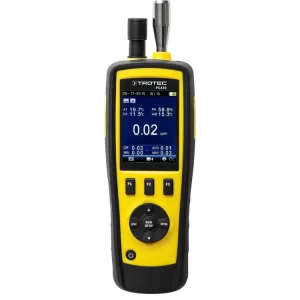

PC200 Particle Counter

Description

With its ISO 21501-4 conformity, the PC200 can be used for various measuring functions from testing cleanrooms and filter efficiency to monitoring burdens at workspaces and quality assurance.

All measured values of the six particle size channels are shown simultaneously on the 2.8 inch colour LCD display.

An additional colour indicator display with automatic acoustic alarm makes it easier to quickly detect critical particle concentrations.

Besides the size and amount fractions of air particles the PC200 also detects environmental factors such as air temperature, humidity, and dew and wet-bulb temperature.

Additionally, the built-in digital camera makes it possible to take photos and record videos of the measured environment.

The PC200 data logging function can store up to 5,000 measurement records on its internal memory. This can be expanded by up to 8 GB with a MicroSD card, which significantly raises the storage capacity. After measuring, all detected data can be quickly and easily transmitted to a PC via a USB interface for documentation or analysis.

A few practical benefits:

• Particle counter with durable laser diode
• Conforms with ISO 21501-4
• 6 particle size channels from 0.3 to 10 μm
• Detects size fractions and concentrations of air particles
• Also measures environmental factors such as air temperature, humidity, dew and wet-bulb temperature
• Data logger for 5,000 measurements on the internal memory (optional memory expansion of up to 8 GB with a MicroSD card)
• Integrated digital camera for photo and video documentation of the measured environment
• Additional colour indicator display with automatic acoustic alarm for quick detection of critical particle concentrations
• 2.8 inch colour LCD display with backlight for simultaneous display of all measured parameters
• Ergonomic single-handed operation
• Tripod mount for continuous measurement on a tripod
• PC measurement data export via USB interface

Technical details of the PC200:

Particle counter

• Measuring channels: 6
• Channel sizes: 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10.0 μm
• Counting modes: Concentration, cumulative, differential
• Counting efficiency: 50% at 0.3 μm, 100% for particles > 0.45 μm
• Flow rate: 2.83 l/min (0.1 ft³/min), controlled by internal pump
• Zero count: < 1 particles / 5 min.
• Coincidence loss: 5%, 2 million particles per ft³ (28.3 litres)
• Light source: Laser class 3B, wave length 780 nm, 90 mW
• Sample inlet: Isokinetic probe

Air temperature

• Measuring range: 0°C to 50°C (32°F to 122°F)
• Accuracy: ±0.5°C (0.9°F) at 10°C to 40°C (50°F to 104°F), ±1.0°C (1.8°F) at other temperature ranges

Humidity

• Measuring range: 0 to 100% RH
• Accuracy: ±3% at 40% to 60%, ±3.5% at 20% to 40% and 60% to 80%, ±5% at 0% to 20% and 80% to 100%

Dew point temperature

• Measuring range: -30°C to 100°C (-22°F to 199°F)
• Accuracy: ±0.5°C (0.9°F) at 10°C to 40°C (50°F to 104°F), ±1.0°C (1.8°F) at other temperature ranges

Wet-bulb temperature

• Measuring range: 0°C to 80°C (32°F to 176°F)
• Accuracy: ±1.0°C (1.8°F)

Data storage

• Measurement data: 5,000 data records on the internal flash memory (optional memory expansion with a MicroSD card: up to 8 GB)
• Photo: JPEG format, resolution 640 x 480 pixels
• Video: 3GP format, resolution 320 x 240 pixels

Equipment

• Display: 2.8 inch colour LCD display, 320 x 240 pixels, with backlight
• Functions: maximum, minimum and average display, measured value hold function, alarm function, language selection, °C/°F switch, photo or video recording, adjustable automatic display switch-off (90 seconds, 2 minutes or 4 minutes) and device switch-off (3 minutes, 15 minutes or 60 minutes)
• Memory expansion: Slot for removable MicroSD memory card
• PC interfaces: USB connection

Power supply:

• Battery type: Polymer Li-Ion
• Operating time: approx. 4 hours of continuous operation
• Charging time: approx. 2 hours with an AC adapter

Physical characteristics:

• Dimensions L x W x H: 57 x 75 x 240 mm
• Weight: 570 g
